Decription:

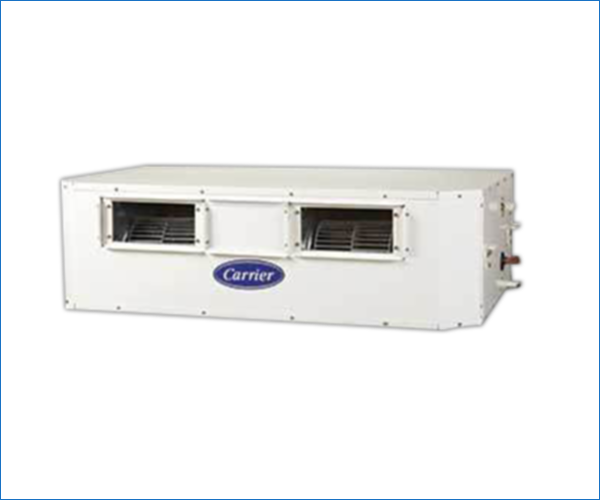

Ducted scroll offers a wide range of products from 3 TR to 17 TR catering to different applications from small spaces to big offices.

The scroll compressors give high volumetric efficiency, low friction losses, low sound and vibration compared to conventional reciprocating and rotary compressors.

Phase sequence protection safeguards the compressor against reverse phase sequencing.

R22 – 3.0 TR, 4.O TR, 5.5 TR, 8.5 TR, 11.0 TR, & 17.0 TR
               (10.6KW, 14.1 KW, 19.3 KW, 29.9 KW, 38.7 KW, 59.8 KW)

R410A - 3.0 TR, 4.O TR, 5.5 TR, 8.5 TR, 11.0 TR, & 17.0 TR
               (10.6KW, 14.1 KW, 19.3 KW, 29.9 KW, 38.7 KW, 59.8 KW)

* 1.5 TR ( 5.1 KW) and 2 TR (6.3 KW) Furred-in units are also available with R410A refrigerant

Mode of Operation

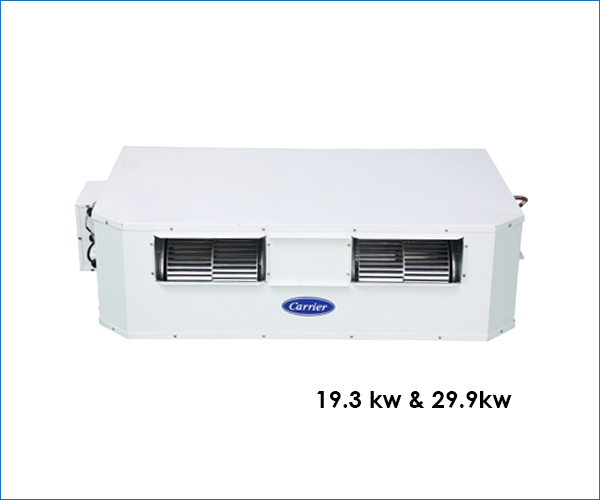

Digital scroll compressors with variable compression technology can operate under a wide range from 30% to 100% with improved energy efficiency at part loads.

Digital scroll technology offers a precise control of room temperature within + 0.5’c.

Piping flexibility – maximum piping length up to 50 m .

Reliability -  Accumulator prevents the back flow of liquid refrigerant to the compressor at low loads and ensures high reliability.
